Navi331 3D 3x1 HDMI Switch
Share your HDMI sources with a single HD monitor. This 3×1 HDMI Switch allows you to switch between 3 HDMI sources (set top box, DVD players, video game stations, etc.) and your HD monitor easily. This switch passes both digital and audio signals through the HDMI ports! It is powered from HDMI cable and ensures high-quality signal transmission as well. It supports full HD 1080p and 1080P@24Hz 3D source.
|
Input Video Signal |
0.5 -1.0 volts p-p |
|
Input DDC Signal |
5 volts p-p (TTL) |
|
Max Single Link Range |
1920 x 1080 |
|
HDMI Resolutions |
480p/576p/720p/1080i/1080P; 3D 1080P / 24HZ |
|
DVI Resolutions |
480p/576p/720p/1080i/1080p |
|
XUVGA |
Up to 1920×1200 |
|
HD Video Format |
Deep Colour |
|
Bandwidth |
Up to 225MHz |
|
Power supply |
DC 5V@1A |
|
Max. Power |
1.0W |
|
TMDS Voltage |
1Vp-p |
|
Resistance |
75Ω |
|
Max. Transmission length |
10 meters (powered from HDMI cable) 15 meters (powered from power supply) |
|
|
|

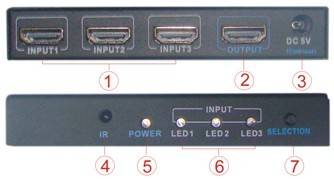

(1) Connect HDMI Sources
(2) Connect HDMI Display
(3) Connect DC 5V@1A power supply (optional)
(4) IR Receiver
(5) Power LED
(6) LED of Input Port
(7) Input switch button
|
ITEM |
QTY |
REMARKS |
|
3×1 HDMI Switch |
1 PCS |
|
|
Remote Control |
1 PCS |
|
|
User Manual |
1 PCS |
|
Package Info:
|
|
Weight (KG) |
Dimension (LxWxH cm) |
|
Product |
|
11.4X5.3X2 |
|
Gift Box (1pcs with accessories and gift box) |
0.282 |
14.4x12.8x4.2 |
|
Carton Box (48pcs) |
14.5 |
41X36X31 |
